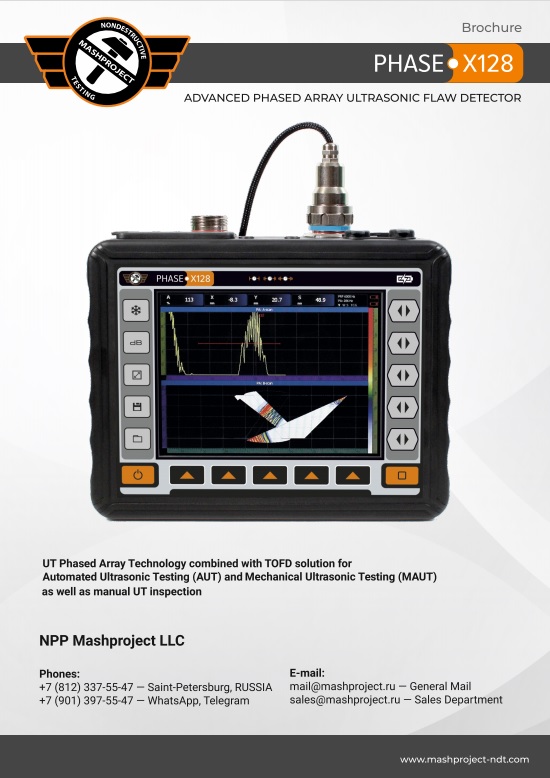

PhaseX128 – Ultrasonic phased array flaw detector

Ultrasonic flaw detectors

The PhaseX128 is a high-performance ultrasonic flaw detector designed for simultaneous operation with two 64-channel phased array probes and a variety of scanners, including roller scanners and combined PA+TOFD scanners. With an S-scan refresh rate of 100 Hz, it enables high-speed weld inspection from both sides at up to 6–9 meters per minute.

The device also supports up to two TOFD channels, meeting global inspection standards. A classic flaw detection mode is included. An advanced software package provides automated data collection, image processing, and 3D visualization for detailed evaluation.

• Weld inspection using phased array and TOFD techniques
• Automated scanning with 2D scanners
• Defect detection in metal structures
• High-speed, high-resolution inspection of complex geometries
• Post-scan 3D analysis and reporting
• Supports full weld geometry definition, including wall thickness differences, cap bead dimensions, and heat-affected zone width (image 1)
• Universal, clearly structured probe positioning on the scanner ensures precise data alignment into a unified scan (image 2)
• Up to 4 inspection groups can be configured for each phased array probe
• High-resolution imaging with multiple scanning types:
  – Classic S-scan
  – Fixed-angle L-scan
  – Combined LS-scan (compound S-scan with beam swing and aperture movement

Probes characteristics

Phased array (PA) channels:

• Generator configuration: 16:128 (optional 32:128)
• Excitation voltage: ±75 V
• Pulse type: Radio pulse
• Synchronization: by position encoder or by time
• Gain: 0–80 dB (0.5 dB step)
• Operating frequency range: 500 kHz – 20 MHz
• Sampling rate: 100 MHz
• ADC resolution: 10 bits
• Data resolution: 16-bit
• Signal recording: Digital recording of each waveform
• Maximum A-scan length: up to 10,000 points
• Pulse repetition frequency: Up to 20 kHz
• Number of focal laws: up to 1024
• Sensitivity leveling: 2D by angle and depth (TCG range 60 dB, 32 points with slope up to 50 dB/μs)
• Focus types: depth, path, distance, auto
• Decimation: 1:1 / 1:128

Single-element (conventional UT) channels:

• Number of channels: 2 independent
• Excitation voltage: ±200 V
• Operating frequency range: 500 kHz – 20 MHz
• Sampling rate: 100 MHz
• Gain: 0–110 dB (steps: 0.1 / 0.5 / 1 / 2 / 6 dB)
• Processing modes modes: A-scan, B-scan, TOFD
• Connectors: 4 x Lemo 000
• Built-in scan constructor for each group enhances setup flexibility
• Real-time and post-scan defect analysis for immediate scanner adjustment

Technical specifications

Storage: USB flash or Ethernet (10/100 Mbps)
USB ports: 2 onboard + hub for 5 additional
Data file size: up to 300 MB
Standard scanning speed: 6–9 m/min
Scan length: 5000 measurements
Display: 8.5″ TFT, 800×600, contrast mode for sunlight
Power: 2 swappable batteries, up to 12h operation
External power: 220 V AC
Operating temperature range: from -35 °C to +50 °C
Dimensions: 280 × 245 × 100 mm
Weight: 2.5 kg (with battery)

• PhaseX128 flaw detector unit
• 2 rechargeable batteries
• Battery charger
• Power supply (220 V AC)
• USB storage device
• Transport case
• Quick start guide
• Calibration block (optional)
• Software package for PC analysis
• Rugged transport case
